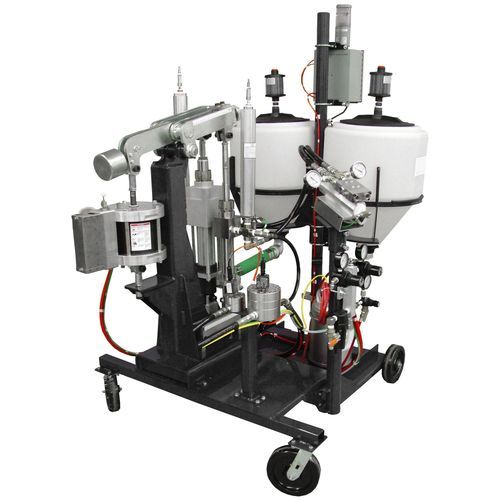

Resin mixer-dispenser

urethanefor coatingsepoxy resin

Universal Proportioner System Covers a wide application range for epoxy and urethane laminating resins and coatings The Universal Proportioner System covers a wide application range for epoxy and urethane laminating resin and coatings. The air motor drives a heavy duty rocker arm linkage drive which drives two double acting reciprocating piston pumps. The resin side is fixed and the hardener side is adjustable, using an upper and lower screw/clamp block to set the ratio range. Depending on desired flow rates and ratios, a series of fluid sections and dispense guns are available to fit your needs. The stainless steel fluid section series includes perfluoroelastomer soft seats which are ideal for improved metering with very low viscosity hardeners. The UPLS-1000 fluid section alone has an output range of over 4 gallons (15.14 liters) at 40 cycles per minute. Paired with the UPLS-4600 hardener fluid section, for example, and set at a 3:1 ratio, would total 5.4 gallons (20.44 liters) per minute. Standard on most systems is the user-friendly Pro Recirculation Gun. This allows an easy way to purge air out of the system during material container change, ratio checks, shut-down and start-up procedures with no material waste. The High-Volume Automatic 1:1 Pro Gun is also ideal to use with this system. The stainless steel head with hardened 440 stainless steel valve rod comes standard with a new glass filled Teflon valve rod seals. For lower flow rates, and applications that require a hand held gun, we recommend the classic 1:1 Pro Gun.
