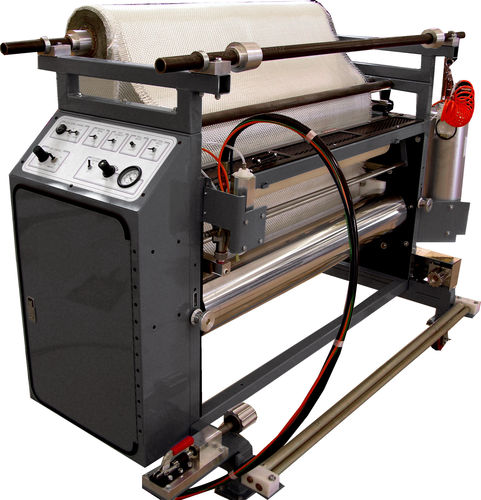

Fabric impregnation machine

portable

Designed to process woven roving, stitch mat and/or fiberglass cloth with catalyzed resin The portable impregnator unit is designed to process woven roving, stitch mat and/or fiberglass cloth with catalyzed resin, metering the resin-to-glass ratio and depositing this material on a flat surface (either male or female mold style). The unit is provided on rollers to allow its movement within a facility and be used on multiple stationary molds. PORTABLE IMPREGNATOR Details: • Equipment Configuration: Stationary or portable • Mix & Dispense Equipment: Epoxy, Polyester, Vinylester, etc • Controls: Pneumatic controlled & adjusted • Auto Level Controls: Controls resin dispensed level in Nip Rolls • Instrumental Dials: Adjustment for fabric changes & variable wet-out • Glass to Resin Ratio: Content up to 55% • Standard Widths: Available 18in (457mm) to 100in (254M) • Output Capacities: 1,000 lbs (454 kg) per hour • Processing Speeds: 20 ft (61 M) per minute • Cleaning: Solvent flush spray system Options: • Take-Up Assembly: Spools up wetted materials with protective film • Bridge Crane Mounted: Provides wetted material directly from above into mold
