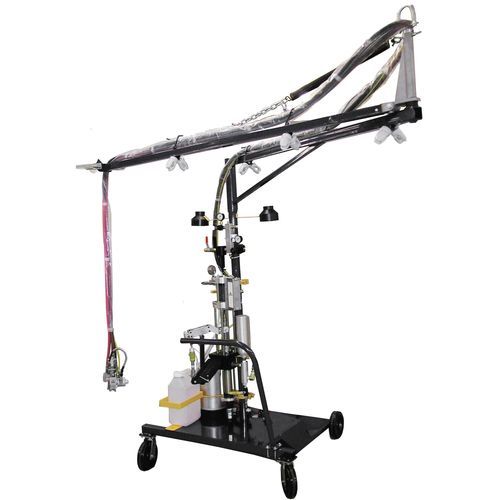

Low-pressure chopper and wet out system UltraMAX™

ruggedhigh-volume

UltraMAX™ Pumping Systems The MVP UltraMAX™ FIT® Chop system is one of several MVP systems others compare themselves to. The UltraMax chop system utilizes low pressures (15 – 30 psi) to makes quality parts with minimal overspray and material waste. Configurable with patented FIT® (Fluid Impingement Technology), the system is the best in class for emission controls. The system includes rapid access design (RAD) for easy maintenance and reliable performance. With no splashing or bounce-back and less air entrapment, the UltraMAX Chop system produces a stronger, more uniform laminate. Available in Internal and External Mix Configurations. STANDARD VOLUME • Specifications: • Output Capabilities: Up to 3-15 lbs./min.(1.36 – 6.80 kg/min.) • Catalyst Percentage: 0.75% to 3% by volume • Air Consumption: 8 CFM (0.23m3 • Pump Ratio: 6:1 & 11:1 • Maximum Air Input Pressure: 100psi • Options: • CFH-4000-B • CFH-4000-AI (Air Initiate) • CB-8000 Monitor • CTS-9000 Catalyst Alarm HIGH VOLUME • Specifications: • Output Capabilities: (Automatic) (Resin) approx. 20-30 lbs./min. (9.07 – 13.6 kg/min); (Hand-Held) approx. 8-18 lbs/min (3.63-8.16) • Catalyst Percentage: VHPC – 1000 0.5% to 1.25% • VHPC 4200 .5% to 2.2% • Air Consumption: (Resin) 18 CFM (0.4m) average; (Chopper) 10-20 CFM (0.3-0.6m) • Pump Ratio: 6:1 & 12:1 • Maximum Air Input Pressure: 100 psi • Options: • CFH-4000-B • CFH-4000-AI (Air Initiate) • CB-8000 Monitor • CTS-9000 Catalyst Alarm
