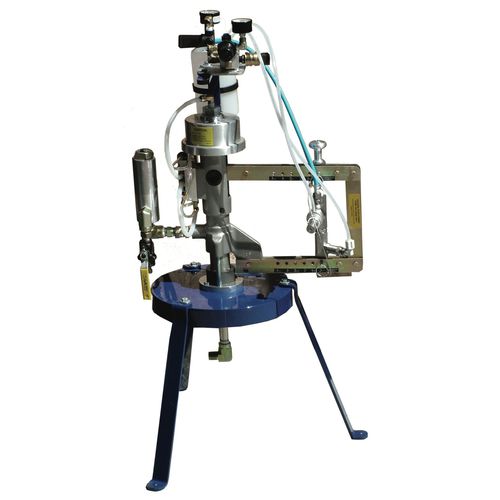

Gelcoat spray unit Pro Rider

stainless steelfor small partsexternal mixing

Reliable low pressure gelcoat delivery, easy setup, easy operation, and easy maintenance Pro Gelcoat Systems feature reliable low pressure gelcoat delivery, easy setup, easy operation and easy maintenance. With fewer parts and durable stainless steel components, this systems provides versatility and portability. Designed to handle low-to-moderate volumes, the MiniPro Gelcoater is ideal when the high-volume capacity of the UltraMax or Patriot systems is not required. All Pro Series gelcoaters use the V-Pro 2000 high-speed reversing valve to ensure smooth changeover from top to bottom stroke. Featuring the famous Pro pumping system that utilizes a heavy duty stainless steel catalyst pump, this machine allows the operator to adjust the preferred setting with ease. Catalyst settings can be made with a simple pin adjustment. Choose your preference: available in external mix configurations with either the ATG-3500 or TLN-XG-100 Talon Gun. Both deliver versatile spray and impinge gelcoat performance. PRO RIDER GELCOAT SYSTEM • Specifications: • Output Capabilities: approximately 1-4 lbs./min. (.45-1.8kg) • Catalyst Percentage: 1.5% to 3% by volume • Air Consumption: maximum 5-7 CFM • Pump Ratio: 22:1 • Maximum Air Input Pressure: 100 psi • Options: • CFH-2000
