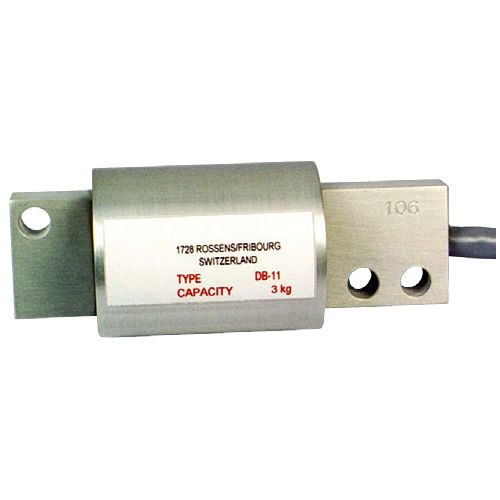

Tension load cell DB-11

beam typestrain gaugeanalog

The Magtrol DB-11 Transducer is designed for measuring both static and dynamic forces. Using strain gauge technology, a deformation of the sensing element provides an electrical signal proportional to the force being measured. Features Nominal capacity: 20 N, 30 N, 50 N, 75 N and 100 NAccuracy: 0.5 % Strain gauge area double-sealed to IP 67 protection class High-strength anodized aluminum alloy measuring spring Aluminum alloy protective tube with two nitril-rubber membranes Shielded connection cable EX approval Applications Made entirely of aluminum, the DB-11 Transducer can be used for many low-range force measurements. Manufactured according to EX approval and connected to a signal conditioner, the DB-11 is ideal for weighing and dosing applications in explosive dust atmospheres.
