Air-cooled brake AHB Series
hysteresiselectromagneticbi-directional

Air-cooled brake - AHB Series  - MAGTROL - hysteresis / electromagnetic / bi-directional
Air-cooled brake - AHB Series  - MAGTROL - hysteresis / electromagnetic / bi-directional
Air-cooled brake - AHB Series  - MAGTROL - hysteresis / electromagnetic / bi-directional - image - 2
Air-cooled brake - AHB Series  - MAGTROL - hysteresis / electromagnetic / bi-directional - image - 3
Air-cooled brake - AHB Series  - MAGTROL - hysteresis / electromagnetic / bi-directional - image - 4
Add to favorites
Compare this product


Characteristics

Type
hysteresis
Operation
electromagnetic
Other characteristics
bi-directional, adjustable, robust, air-cooled, shaft-mounted, base-mounted, heavy-duty, low-inertia, flange-mounted, low-noise, through-bore, dynamometer, air-cooled, for motors, surface mount
Torque

Max.: 24 Nm
(17.7015 ft.lb)

Min.: 0.3 Nm
(0.2213 ft.lb)

Rotational speed

Max.: 35,000 rpm
(219,911.49 rad.min-1)

Min.: 12,000 rpm
(75,398.22 rad.min-1)

Power

Max.: 5,300 W

Min.: 25 W

Description

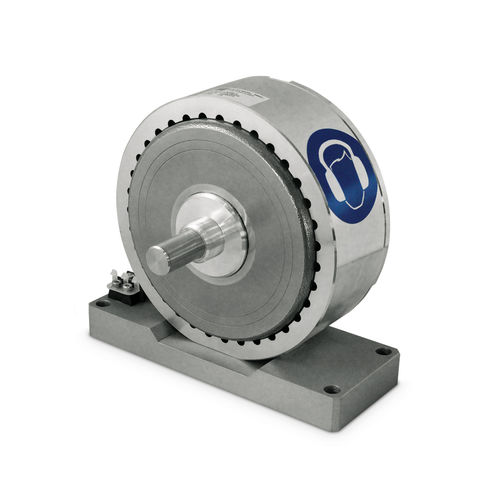

Product Description When torque control/torque measurement must be performed at the highest possible power, Magtrol AHB Series Hysteresis Brakes are ideal. Passages running through the brakes enables compressed air cooling, providing excellent heat dissipation. This design allows for continuous power ratings up to 3000 watts (5300 watts intermittent). Use of pre-loaded bearings in the AHB Series Hysteresis Brakes allows operation at speeds of up to 25,000 rpm for extended durations. AHB Brakes are conveniently base mounted. Base mounting, with integral barrier type terminal strip, provides easy mounting and wiring. Features •Ideal for low-torque/high-speed applications with exceptional power ratings •Torque: 1 N·m to 24 N·m •Speed: up to 25,000 rpm •Power: up to 5300 W •Compressed-air cooling offers excellent heat dissipation •Allowable input air pressure of up 95 PSI eliminates the need for a regulator •Magtrol hysteresis braking technology provides precise torque control independent of shaft speed •EMC susceptibility conforms to European standards •All metric dimensioning •Base mounting standard •Designed for use with Magtrol PT Series T-slot Base Plate mounting system •A variety of accessories and system options to choose from to create a simple and cost-effective test system.
