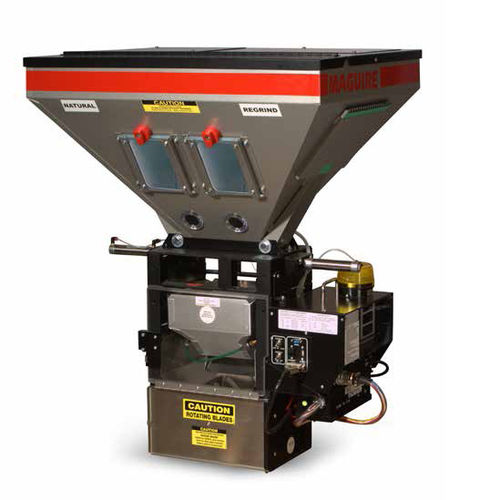

Granules batch blender WSB 220

gravimetricfor the plastics industry

The 200 Series Maguire Weigh Scale Blenders can be applied to meet the requirements of a variety of blending applications. With through-puts up to 900 lb/hr (400 kg/hr) these models have the flexibility to be applied on-the-throat for medium sized throughput applications, next to the machine for easy access or on a specialized stand for central blending. These models have the capability of blending up to 8 components and are available with lightweight removable hoppers for fast, easy clean-out. The machine is self-calibrating, never needs adjustment for accuracy, and achieves an overall precision of 0.1% of specified blend. Proprietary microprocessor-control technology monitors and confirms the individual weight of each material component (natural, regrind, color, and additive). Any variation that may have occurred in the actual weights of any components is detected and compensated for. This provides for a continuous process of calibration and correction, assuring extreme accuracy of the blending process. The controller also compensates for use of any previously colored regrind, reducing in accordance the amount of color to be dispensed.
