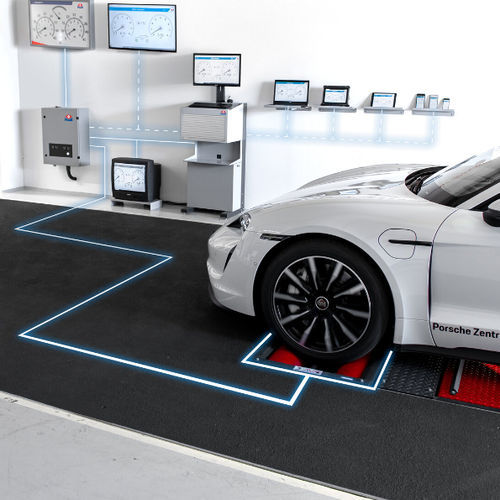

Car brake tester C_MBT C 3.5 W250

roller

Digital roller brake tester for cars and vans up to 3.5 t axle load with 2 x 3 kW drive motors and a max. track width of 2,500 mm. Particularly suitable as stand-alone tester or as part of car reception and diagnostic test lanes for larger vehicles such as SUVs, off-roaders or vans. PRODUCT DETAILS / SCOPE OF DELIVERY Features: Real slip monitoring and automatic start-up delay as standard Tyre-saving thanks to integrated automatic start-up monitoring Automatic slip switch-off with pointer stop and automatic restart Automatic aid for comfortable vehicle exit with driven axles Automatic switch-off after vehicle exit Electronic, temperature compensated (neutral) strain gauge system Internationally recognised TÜV report in accordance with VkBl 9/2011 (Germany) Further product advantages A sturdy and solid design Interface module in the floor assembly Secure and digital data transmission Modular control box set-up Multi-flexible display possibilities Simple start-up Simple maintenance and service Safe operation Optimised calibration and adjustment Integrated and expandable software and/or interfaces Configuration: Self-supporting, encased roller set (Compact) Continuously height-adjustable (245 - 300 mm) High-quality powder coating: anthracite grey, RAL 7016 Scope of delivery: Control box with integrated control unit TECHNICAL DATA Min. track - 780 mm Max. track - 2500 mm
