Car brake tester C_MBT C 5.0 W280
roller

car brake tester
car brake tester
car brake tester
car brake tester
car brake tester
car brake tester
car brake tester
Add to favorites
Compare this product


Characteristics

Applications
for car
Other characteristics
roller
Power per motor

4 kW
(5.44 hp)

Braking force

Max.: 8 kN

Min.: 0 kN

Maximum load

5,000 kg
(11,023.11 lb)

Description

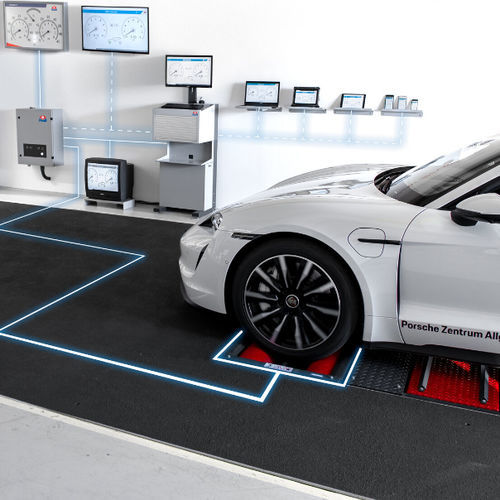

Digital roller brake tester for cars and vans up to 5.0 t axle load with 2 x 4 kW drive motors and a max. track width of 2,800 mm. Particularly suitable as stand-alone tester or as part of car reception and diagnostic test lanes for large and heavy cars and vans, and with increased loads. PRODUCT DETAILS / SCOPE OF DELIVERY Features: Real slip monitoring and automatic start-up delay as standard Tyre-saving thanks to integrated automatic start-up monitoring Automatic slip switch-off with pointer stop and automatic restart Automatic aid for comfortable vehicle exit with driven axles Automatic switch-off after vehicle exit Electronic, temperature compensated (neutral) strain gauge system Internationally recognised TÜV report in accordance with VkBl 9/2011 (Germany) Further product advantages A sturdy and solid design Interface module in the floor assembly Secure and digital data transmission Modular control box set-up Multi-flexible display possibilities Simple start-up Simple maintenance and service Safe operation Optimised calibration and adjustment Integrated and expandable software and/or interfaces Configuration: Self-supporting, encased roller set (Compact) Continuously height-adjustable (245 - 300 mm) High-quality powder coating: anthracite grey, RAL 7016 Scope of delivery: Control box with integrated control unit TECHNICAL DATA Min. track - 780 mm Max. track - 2800 mm Test speed - 5 km/h Roller diameter - 202 mm Roller axle distance - 400 mm gG Fuse - 25 A Power supply - 3/N/PE 400 V 50 Hz Dimensions of roller set (L x W x H) - 2924 x 680 x 280 mm

Catalogs

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
