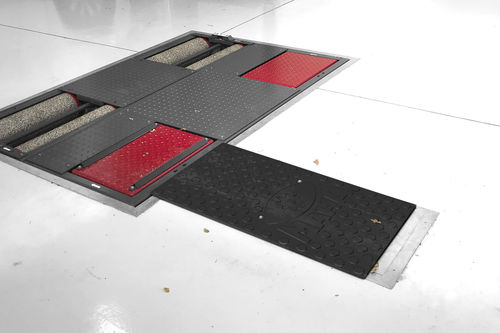

Car side slip tester C_MINC 2.5

The side-slip tester MINC-PROFI ensures that the axle geometry is inspected within seconds once the test vehicle passes over it as well as a fully automatic evaluation of the deviation in m/km. The display of the measured values is via the web client of the CONNECT series. PRODUCT DETAILS / SCOPE OF DELIVERY Specially suitable for car reception and diagnostic test lanes Fully automatic evaluation of deviation in m/km In combination with CONNECT Web client: Automatic display on respective terminal device device, PC,) when vehicle drives onto tester, including evaluation in m/km Design: Self-supporting frame with movable test plate incl. vulcanised rubber pad High-quality powder coating: anthracite grey, RAL 7016 Scope of delivery: Prepared for connection to CONNECT test lane Plug-in cable harness with 3 m total length for connection with C_MBT floor assembly TECHNICAL DATA Measurement range - +/- 20 m/km Test speed - 5 - 7 km/h Floor assembly dimensions (H x W x L) - 80 x 1020 x 460 mm
