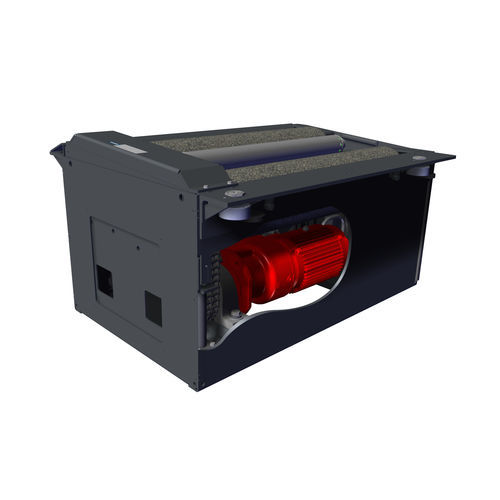

Truck brake tester C_MBT S 15.0 R100 MU

roller

Digital roller brake tester for vans and trucks up to 15 t axle load with 2 x 9 kW drive motors. Particularly suitable as stand-alone tester or as part of truck reception and diagnostic test lanes at high-frequency operation and increased load. Split design, motor arrangement underneath the test rollers for suspended pit and foundation installation. Configuration: Split design as standard, motor arrangement underneath the test rollers for suspended pit and foundation installation Dimensions offer optimum testing opportunities for standard vehicles in the van and truck sector High-quality powder coating: anthracite grey, RAL 7016 Scope of delivery: Control box with integrated control unit TECHNICAL DATA Test speed - 2.3 km/h Roller diameter - 202 mm Roller axle distance - 430 mm Roller length - 1000 mm gG Fuse - 50 A Power supply - 3/N/PE 400 V 50 Hz Dim. of roller set half (L x W x H) - 1235 x 1045 x 620 mm
