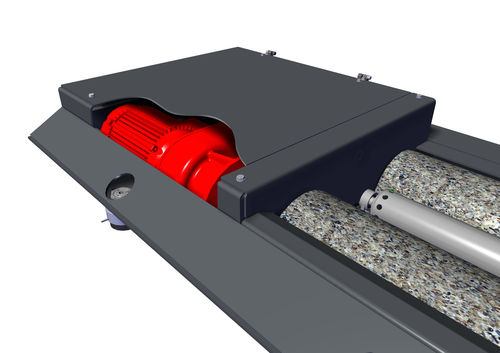

Truck brake tester C_MBT S 18.0 R160 MS

roller

Digital roller brake tester for vans and trucks up to 18 t axle load with 2 x 11 kW drive motors. Particularly suitable as stand-alone tester or as part of truck reception and diagnostic test lanes, for low loaders and vehicles with excess width. Split design, lateral motor arrangement for pit and foundation installation or for above-floor use. Configuration: Split design as standard, lateral motor arrangement for pit and foundation installation or for above-floor use Dimensions offer optimum testing opportunities for standard vehicles in the van and truck sector Large test roller diameter of 265 mm specially for the commercial vehicle sector High-quality powder coating: anthracite grey, RAL 7016 Scope of delivery: Control box with integrated control unit TECHNICAL DATA Test speed - 3 km/h Roller diameter - 265 mm Roller axle distance - 475 mm Roller length - 1600 mm gG Fuse - 63 A Power supply - 3/N/PE 400 V 50 Hz Dim. of roller set half (L x W x H) - 2685 x 1145 x 405 mm
