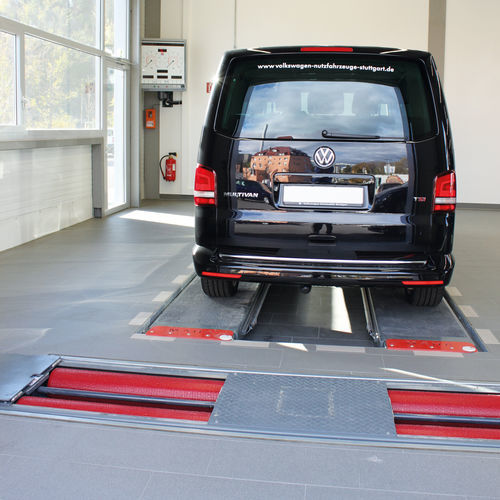

Car brake tester MBT 3200 LON

roller

The test-lane-compatible roller brake tester MBT 3200 LON is designed for the brake testing of cars, vans and light-duty trucks with axle loads of up to 8.0 t. Its standard test speed of 5 km/h complies with the country-specific legal requirements for testing cars and light-duty trucks. Its multi-analogue display, with two pointer gauges, enables the display of brake, side-slip and shock absorption test results. As a test speed of 5 km/h is supplied as standard, both cars and light lorries can be tested in compliance with legislation. Multi-analogue display with two pointer indicators (Diameter: 2 x 350 mm) and an integrated switch and electrical cabinet Display option for: Brake tester Wheel arch tester Shock absorption tester Difference display (three-digit + LED bar) for evaluating: Difference in braking force Difference in shock absorption Deviation in wheel arch Program control using 32-bit microprocessor electronics enables the finest resolution for the measurement results - Comprehensive package of functions for professional testing, such as: Delayed automatic switch-on after entering the tester Automatic start-up monitoring supplied as standard to avoid tyre damage Automatic slip cut-off with pointer stop and automatic restart already included as standard Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester Automatic cut-off after exiting the tester Robust and long-lasting design due to: Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions Roller surface welded Optional, free plastic coating on the test rollers
