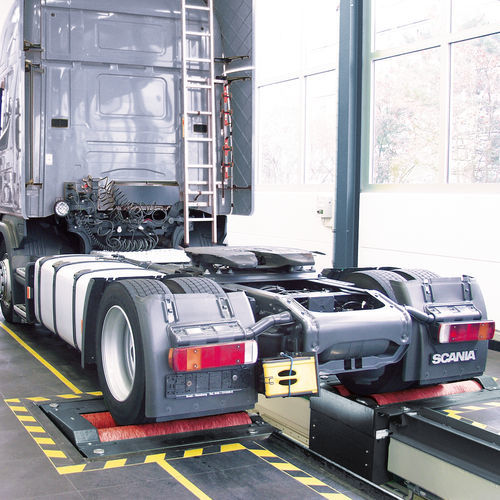

Truck brake tester MBT 7200 LON W CLASSIC

roller

The test-lane-compatible roller brake tester MBT 7200 LON W CLASSIC is designed for the brake testing of trucks with axle loads of up to 18.0 t and is ideal for truck diagnostics in situations of high vehicle throughput. Its large sensor roller, with a diameter of 100 mm, guarantees measurable coverage across all tyre dimensions. Perfectly suited to lorry diagnostics, even with a very high vehicle throughput With the optionally available, integrated roller set lift: For load simulation For redistribution on an axle to be tested No foundation modifications saves a substantial amount of structural effort Service and installation-friendly design with maintenance flap Large sensing roller with a diameter of 100 mm guarantees measurable coverage across all tyre dimensions Multi-analogue display with two pointer indicators Display option for: Brake tester Wheel arch tester Shock absorption tester Difference display (three-digit + LED bar) for displaying: Difference in braking force in % Difference in shock absorption in % Deviation in wheel arch in m/km Results evaluation using additional coloured LED bars User guidance using alphanumerical display Program control using 32-bit microprocessor electronics Comprehensive package of functions for professional testing, such as: Delayed automatic switch-on after entering the tester Automatic start-up monitoring supplied as standard to avoid tyre damage Automatic slip cut-off with pointer stop and automatic restart already included as standard Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester Automatic cut-off after exiting the tester
