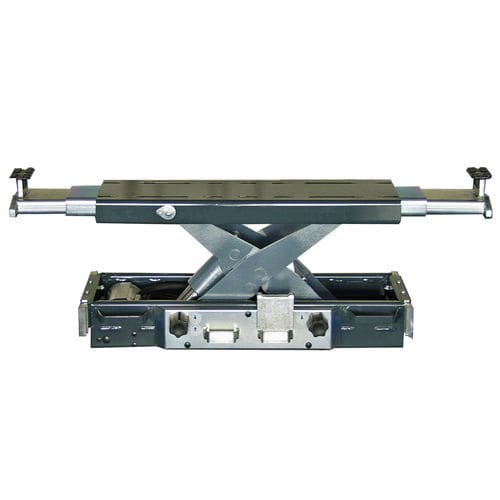

Floor jack AL II 2.6 PHhydro-pneumaticaxle
Add to favorites
Compare this product
Characteristics
- Type
- floor
- Technology
- hydro-pneumatic
- Applications
- axle
- Lifting height
250 mm
(9.8 in)- Stroke
250 mm
(9.84 in)- Pressure
8.5 bar, 12 bar
(123.28 psi, 174.05 psi)
Description
The axle jack has proved successful thanks to its robust, tried and tested technology and is suitable for a load capacity of up to 2.6 t. Operation is either via manual hydraulic or hydro-pneumatic system. The axle jack can be supplemented by a wide range of accessories.
Powder coating in RAL 7016, anthracite
incl. carriage
incl. air supply set (spiral hose, guide rope)
incl. 2 rubber pads for lifting brackets
incl. 3 lift extenders measuring 10 / 45 / 85 mm
TECHNICAL DATA
Minimum air quantity - 500 l/min
Extension length - 780 - 1610 mm
Max. protrusion above runway - 70 mm
