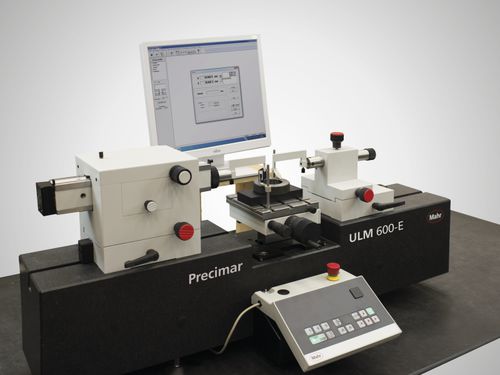

Length measuring machine Precimar ULM series

automaticcalibrationhorizontal

Maximum precision metrology combined with extremely efficient measuring processes. Whether classic ULM or motorized PLM and CiM instruments. Mahr universal length measuring machines enable user-friendly, fast and reliable measurement with minimal uncertainty. The ULM-E universal length measuring instruments are comparators with horizontal base bed (highly homogeneous, rigid granite). X-axis measuring system: Heidenhain incremental, precision length measuring system, 100 mm long Z-axis measuring system: RENISHAW incremental, precision length measuring system, 80 mm long Applications Calibration of: • Plain plug gages and gage rings • Setting gage rings • Snap gages • Spherical gage blocks, internal micrometers • Gage blocks • Thread gages • Taper thread gages • Gear gages • Taper gages • Dial indicators • Dial comparators • 2-point bore gages • Outside micrometers • 2-point inside micrometers • Length measurement on precision table
