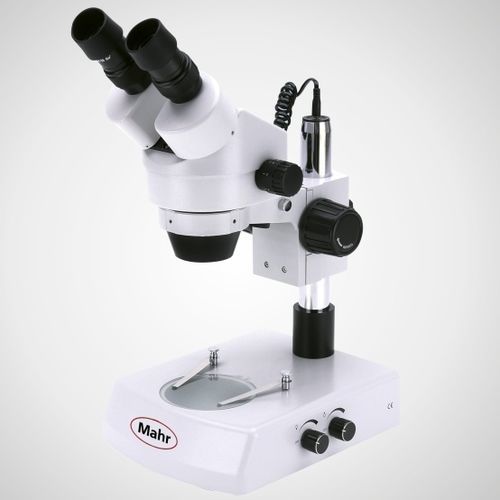

Optical microscope MarVision SM 151

measuringinspectiontrinocular

Stereo zoom microscope SM 151 Observation tube angle: 45° Camera connector: yes Optical tube: Trinocular Field of vision - diameter in mm: 28 - 5 Magnification: variable 7x-45x Max. object height in mm: 75 Illumination: 12 V /15 W, Incident and transmitted light, variable Energy supply: 230 V / 50 Hz Package contains: Eyepiece 10x with eyecup, dust cover, glass and plastic plate black/white, instruction manual • High quality optics for light intensive and sharp 3D images • Continuously variable magnification due to the adjustable zoom lens • Focusing with an ergonomic handwheel, mounted either side for either a left or right handed operator • V-block head tilted to 45° and rotatable through 360°; with the dioptric adjustment (54 – 76 mm) • Integrated incident and transmitted illumination, continuously variable • Optional attachment of a digital camera (SM 151) Applications • For the visual inspection of workpieces on the production line and in quality assurance
