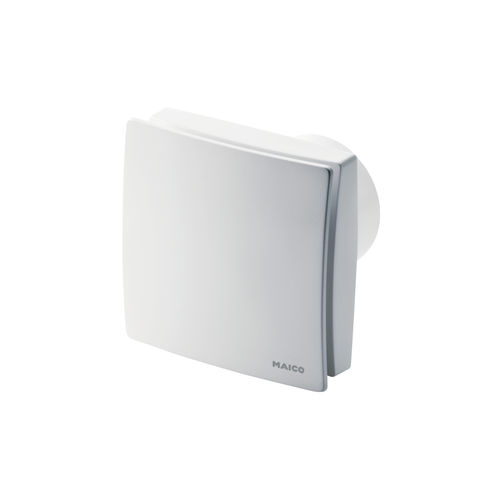

Axial fan ECA IPRO Series

extraction230VACelectrically-powered

ECA 150 ipro RC - short description Two-level small room fan, DN 150, with radio receiver, master-slave operation only possible in single-type system, i.e. only with ECA 150 ipro ...RC... units! ECA 150 ipro RC - Product description Model with radio receiver •With integrated 868 MHz radio receiver. •On/off via DS RC radio switch or separate RLS RC control. •The two speeds can be selected either on the radio switch or control. •Not speed-controllable. •Radio-controlled fan for the MAICOsmart exhaust air system, with inbuilt 868 MHz radio •receiver, based on EnOcean technology. •The fan can be operated with a double toggle switch (DS RC) (no need to route cable between switch and fan). •The fan can be installed in a master/slave network with other ECA 150 ipro •RC/RCH/KRC/KRCH (RLS RC needed). A combination of ECA 150 ipro RC/RCH/KRC/KRCH with •ECA 100 ipro RC/RCH or ER 100 RC is not possible. •Two performance levels. •Designer cover conceals the inlet. •For air extraction. •With VDE GS symbol. •IP X5 degree of protection for safety in the bathroom. •Protection class II. •Colour: traffic white, similar to RAL 9016. •Housing made of impact resistant plastic material. Motor Energy-saving robust motor with ball bearings, maintenance-free. Suitable for continuous operation. Mounting instructions Simplest installation as the cover can be removed easily with tools. Compatible with ECA predecessor models DN 150, because recessed screw holes and cable entry are in the same place. Electrical connection Recessed mounted electrical connection.
