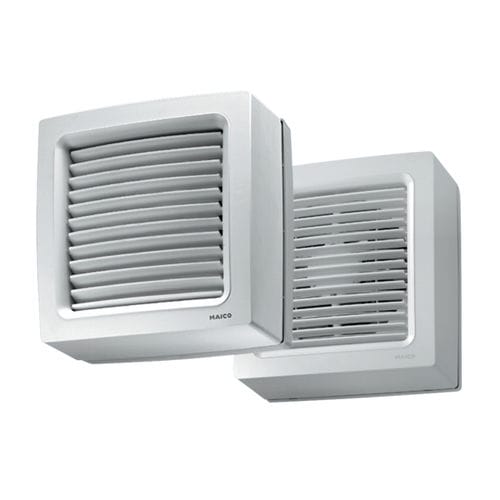

Axial fan EVN Seriescoolingextraction230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling, extraction
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- plastic
- Applications
- window
- Air flow
240 m³/h, 490 m³/h, 640 m³/h
(8,475.52 ft³/h, 17,304.187 ft³/h, 22,601.387 ft³/h)- Rotational speed
1,160 rpm, 1,280 rpm, 1,550 rpm
(7,288 rad.min-1, 8,042 rad.min-1, 9,739 rad.min-1)- Noise level
41 dB, 48 dB, 50 dB
Description
EVN 15 - short description
Axial window fan for air extraction, plastic impeller
EVN 15 - Product description
Features
For installation in windows or thin walls.
Quiet impeller.
EVN 15: Synthetic impeller.
EVN 22: Aluminium impeller.
Maintenance-free fan.
Motor
Thermal overload protection as standard feature. Switches motor off under thermal overload and comes on automatically again after cooling down.
Robust motor with self-lubricating sintered bearings, maintenance-free.
Suitable for continuous operation.
Mounting instructions
Pane thickness: 3 mm to 30 mm.
Screws included in the scope of delivery.
Also suited for thicker panes or walls. Appropriate mounting material must be provided by the customer.
Not suited for installation in double-glazed windows that can be swung open.
Electrical connection
To terminal block in the housing.
Safety instructions
Inside and outside protection against accidental contact in accordance with DIN EN ISO 13857.
