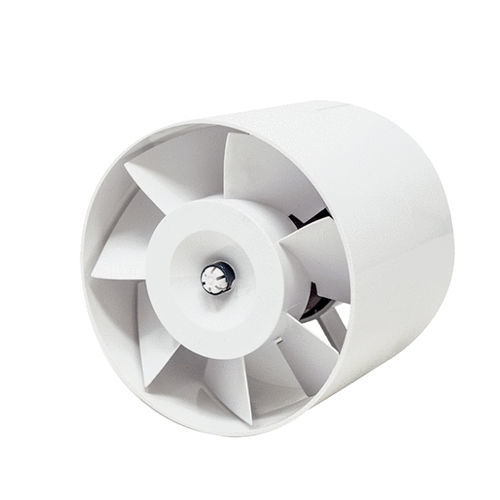

Wall fan ERV seriesaxialexhaust230VAC
Add to favorites
Compare this product
Characteristics
- Type
- wall
- Configuration
- axial
- Function
- exhaust
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- plastic
- Applications
- for small rooms
- Air flow
195 m³/h
(6,886.36 ft³/h)- Rotational speed
2,480 rpm
(15,582 rad.min-1)- Noise level
37 dB
Description
ERV 120 - Product description
Standard model
•On/off via light switch or separate switch.
•Speed controllable.
• 1-level small room fan for ventilating the exhaust air rooms.
• Suitable for continuous operation.
• Standard version: Speed controllable.
• TC version: with adjustable overrun time 3...25min.
• IP X2 degree of protection.
• Protection class II.
• Colour: Traffic white, similar to RAL 9016.
• Housing made of impact-resistant plastic.
Motor
Suitable for continuous operation.
•Installation instructions
Wall and ceiling installation is possible.
•Primarily intended for installation in the WH120/WH150.
Electrical connection
•Electrical connection – flush-mounted.
