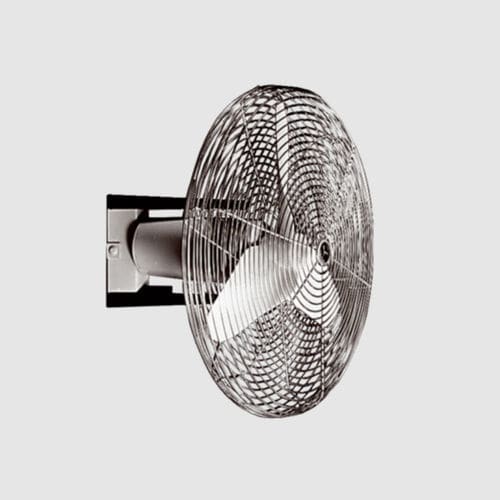

Wall fan ECO seriesaxialventilation230VAC
Add to favorites
Compare this product
Characteristics
- Type
- wall
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- plastic
- Applications
- industrial
- Air flow
2,800 m³/h, 4,500 m³/h
(98,881.067 ft³/h, 158,916 ft³/h)- Rotational speed
1,150 rpm, 1,350 rpm
(7,226 rad.min-1, 8,482 rad.min-1)
Description
ECO 30 E - short description
Oscillating axial industrial fans for wall installation, impeller diameter 300 mm
ECO 30 E - Product description
• Oscillating fan.
• Suitable for wall installation.
• Minimum mounting height = 2.3 m (distance between lower impeller edge and floor).
• With yellow chromated protective cage, protection against accidental contact in accordance with DIN EN ISO 13857.
• 3-blade impeller made of plastic.
• Adjustable pivoting angle: 55°, 70°, 90° or 115°.
• Fan and swivel gear drives can be switched separately.
Motor
Asynchronous motor.
Thermal overload protection as standard feature.
Mounting instructions
Individual components must be fitted on site.
Mounting hooks must be provided by the customer.
Electrical connection
To terminal blocks in the canopy's connection area.
Special versions
The following special versions are available at extra cost on request:
Special voltages and frequencies.
Information on operation at temperatures occasionally below -20 °C available upon request.
If operating with frequency converters, the factory must be consulted.
Feasibility must be checked in each case.
