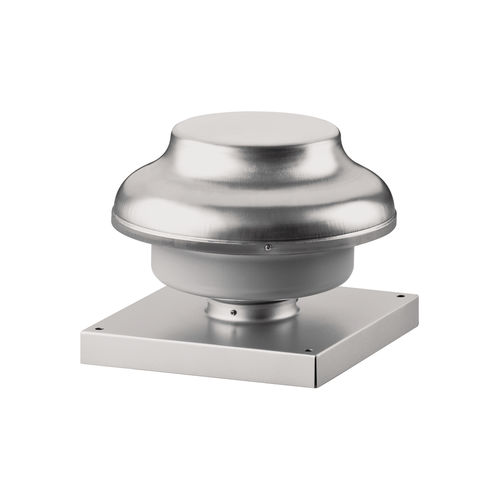

Rooftop fan EHD series

verticalcentrifugalextraction

•Space-saving roof fan with extremely compact dimensions. •For air extraction. •Attractive housing made of galvanised and powder-coated sheet steel. •Cover made of aluminium. •The cover is easily detachable for cleaning purposes. •Coated grille protecting against intervention. •Centrifugal impeller with backwards curved blades. •IP X5 degree of protection. Motor •External rotor - capacitor motor. •Operating capacitor in the terminal box is ready to be connected. •Speed controllable. •Thermal overload protection as standard feature. •Robust motor with ball bearings, maintenance-free. Mounting instructions Thanks to its low weight, cranes or goods lifts are not needed to transport the EHD on to the roof. Electrical connection Connection to terminal block in the housing. Safety instructions The fan can be operated only if the protection against accidental contact with the impeller is guaranteed to be in accordance with DIN EN 13857 for fans with a free inlet.
