Duct fan ERM-E Ex e series
ATEXverticalhorizontal

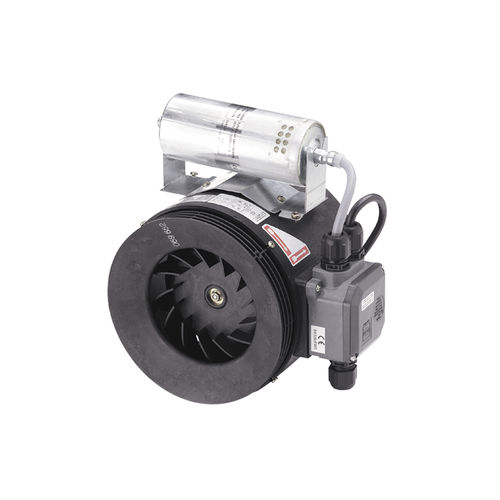

Duct fan - ERM-E Ex e series - MAICO Ventilatoren - ATEX / vertical / horizontal
Duct fan - ERM-E Ex e series - MAICO Ventilatoren - ATEX / vertical / horizontal
Duct fan - ERM-E Ex e series - MAICO Ventilatoren - ATEX / vertical / horizontal - image - 2
Add to favorites
Compare this product


Characteristics

Type
duct, ATEX, vertical, horizontal
Configuration
centrifugal
Function
exhaust, ventilation, explosion-proof
Supply voltage
230VAC
Drive mechanism
electrically-powered
Air flow

Max.: 1,010 m³/s
(35,667.813 ft³/s)

Min.: 310 m³/s
(10,947.547 ft³/s)

Rotational speed

Max.: 3,285 rpm
(20,640 rad.min-1)

Min.: 2,780 rpm
(17,467 rad.min-1)

Description

•Explosion protection in accordance with ATEX. •Ex II 2G Ex e IIB+H2 T3/T4 Gb. •For usage temperatures of -20°C ≤ Ta ≤ +50°C. •7MAICO Ex fans fulfil the safety requirements of European Directive 2014/34/EU for units and •protective systems in explosion-endangered areas. •For zone 1 and 2. •Housing and impeller are made from high quality synthetic material, antistatic •Semi-centrifugal impeller, favourable flow technology. •Inflow direction equals outflow direction. Thus resulting in simple installation. •Can be fitted in any position. Air flow direction •Airstream and rotational directions are indicated by arrows marked on the fan housing Motor •Robust motor with ball bearings, maintenance-free. •Capacitor motor with operating capacitor fitted ready for use on fan. Mounting instructions •Inlet and outlet side connection couplings for direct installation in ventilation ducts. •Reducers for connecting to different duct diameters (intake or exhaust sockets); see accessories. •Use ELM-Ex flexible cuffs to prevent transfer of vibrations onto the duct system. •ERM 22 Ex e: 2 reducers to DN 200 included in scope of delivery. Electrical connection Terminal box fitted to fan housing, explosion proof.
