1. Size: 480*280*980 mm (can be customized)
2. Lane width: 550 mm (can be customized)
3. Passing speed: 35 person/min
4. Power supply: 110V/220V 50/60Hz
5. Weight: 40 kg
6. Gate Open Signal: Dry Contact/ Relay
7. Casing Material: 304 stainless steel
8. Reliability of the mechanism: 3 million, no-fault
9. Arm material: 304 stainless steel
CE Certificated, ISO9001 Certificated.
TRIPOD TURNSTILE GATE from tripod turnstile manufacturers carries a 2 years warranty and durable maintenance and repair support.
We can provide OEM and ODM services. We have experienced designers who can complete deep customization according to any of your needs. We will provide a series of materials such as 3D renderings, dimensional drawings, etc. as soon as possible. We also provide biometric devices, such as IC/ID card readers, fingerprint scanners, QR code scanners, face recognition cameras, and so on. If you need to integrate these devices on the full-height turnstile gate or have any questions, please contact us

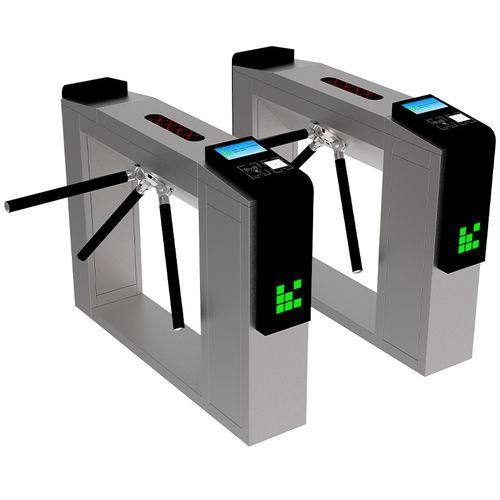

Tripod turnstile is the most basic type of pedestrian turnstile gate, which is composed of the chassis, mechanism, and three blocking rods that stop or release by rotating 120° each time. Its components include a chassis, mechanism, drive control board, motor, limit, direction indicator board, access control part, optional counter, etc. The metal rod (rod length standard 50cm) forms a spatial triangle as the blocking body (brake rod). It is made of 304 or 316 stainless steel, which is durable and not easy to deform. The blocking and releasing are achieved by rotation. MairsTurnstile is a professional tripod turnstile manufacturers.
