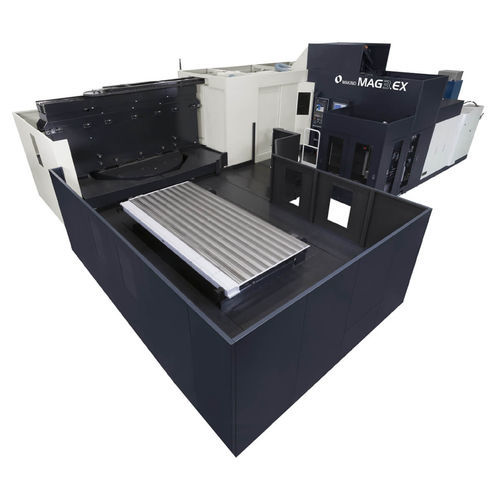

5-axis CNC machining center MAG3.EXhorizontalfor aluminum120 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Machined material
- for aluminum
- Number of tool stations
- 120 tools
- Associated functions
- milling
- Applications
- for the aerospace industry
- Other characteristics
- high-productivity, compact
- X travel
4,000 mm
(157.48 in)- Y travel
1,500 mm
(59.06 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
33,000 rpm
(207,345 rad.min-1)- Power
130 kW
(176.75 hp)- Work feed X-axis
50,000 mm/min
(33 in/s)- Work feed Y-axis
50,000 mm/min
(33 in/s)- Work feed Z-axis
50,000 mm/min
(33 in/s)- Table load capacity
3,000 kg
(6,614 lb)- Tool weight (max)
8 kg
(17.6 lb)- Tool-changing time
10 s
Description
The MAG3.EX 5-axis horizontal machining center is specifically designed for high-productivity aerospace machining of complex aluminum monolithic parts.
The MAG3.EX integrates spindle speed and power with a machine platform that provides rapid precision-contouring capability while maximizing the percentage of in cut spindle time. The compact spindle and short pivot point provided ideal five face work piece accessibility to minimize setups and process variation.
Industry-leading 33,000 rpm – 130kW spindle design, ensures high metal-removal rates. The MAG3.EX can also be integrated with an automatic pallet transfer and storage system in Makino’s highly flexible MMC system that enables extended periods of unattended operation.
