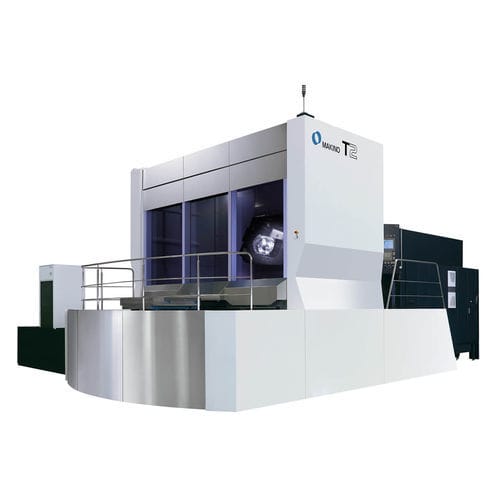

5-axis CNC machining center T2horizontal120 toolsmilling
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Number of tool stations
- 120 tools
- Associated functions
- milling
- Applications
- for large workpieces, for titanium, for the aerospace industry
- Other characteristics
- high-productivity, high-power, rigid
- X travel
2,000 mm
(78.74 in)- Y travel
2,000 mm
(78.74 in)- Z travel
1,800 mm
(70.87 in)- Rotational speed
4,000 rpm, 8,000 rpm
(25,133 rad.min-1, 50,265 rad.min-1)- Power
100 kW
(135.96 hp)- Work feed X-axis
16,000 mm/min
(10 in/s)- Work feed Y-axis
16,000 mm/min
(10 in/s)- Work feed Z-axis
16,000 mm/min
(10 in/s)- Table load capacity
5,000 kg
(11,023 lb)- Tool weight (max)
30 kg
(66.1 lb)- Tool-changing time
20 s
Description
Makino’s new T2 5-axis horizontal machining center dramatically increases titanium-milling efficiency, combining lean manufacturing methods and increased metal-removal rates for today’s aerospace applications.
The T2 specifically designed for the production of large titanium and titanium-alloy aerospace parts such as edge frames, pylons and bulkheads. The T2 includes several key elements for efficient titanium milling, including an Active Dampening System, rigid construction for enhanced performance, a high-torque, high-powered spindle, and a high-pressure, high-flow coolant system for increased speed and productivity.
