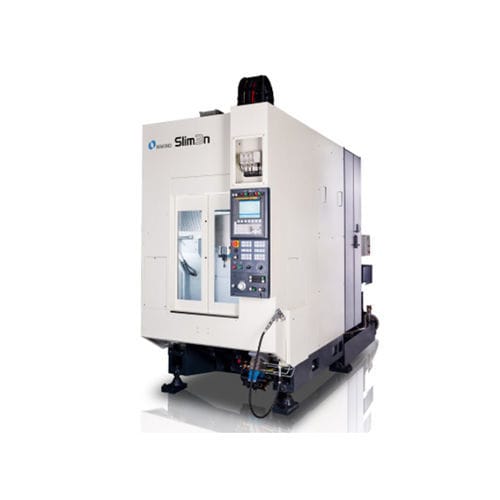

3-axis CNC machining center Slim3n

verticalHSK-A5026 tools

In the high-volume production industry, the task of achieving the requirements of our customers such as shorter turnaround, higher quality and lower cost has become a constant challenge for the machine tool designer. Makino is well known for bringing quality and reliability through its innovative machining centers, technologies and process know-how. Makino’s new Compact Vertical Machining Center - Slim3n, provides high performance and extremely efficient machining for high volume part production. The Slim3n is ideally suited for a wide array of component machining applications focused on maximizing machining process, increasing flexibility, achieving smooth workflow and various types of automation. Slim3n adopts fixed table design to provide customer flexibility for fixture design to meet demands of larger envelope, higher fixture weight and simple interfacing that allows a wide range of machining applications. Finite Element Analysis (FEA) design techniques were employed to optimize structural rigidity and torsional stiffness for ultimate performance and consistent results. The machine structural configuration is based on a closed frame type design together with a pair of long supporting columns achieving superior structural rigidity. Makino’s leadership in spindle technology is renowned throughout the world. Spindle rigidity, higher speed, constant pre-load, multi-plane balancing, minimum vibration and reduced thermal growth are key topics that Makino has pioneered through the art of spindle making by innovative design and manufacturing.
