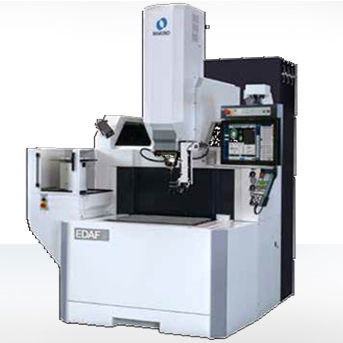

Sinker electrical discharge machine EDAF3-FH

precisionCNC

The EDAF3-Fine Hole machine achieves the same level of high performance as the EDAF2-Fine Hole, but offers larger X/Y/Z Strokes and a larger work tank to accommodate bigger size parts. By combining both standard 4-Axis CNC Sinker EDM capabilities with high precision EDM hole Drilling on a single machine, and uses a EDM di-electric oil that provides dramatic game-changing improvements to EDM Drilling accuracy, edge quality, and metallurgical characteristics. Multiple industries depend on the EDAF3-Fine Hole machine to produce critical high accuracy hole features in applications ranging from Die/Mould to production details found in the Automotive, Medical, and Aerospace fields. The EDAF3-Fine Hole machine features Makino’s Hyper-i control, which provides an advanced and streamlined interface designed to enhance the capability and productivity of operators of all skill levels. The Hyper-i control achieves higher levels of operational efficiency through its intuitive layout that provides a commanding view with a 24” class high-definition touch screen and the development of powerful and practical support tools such as the on-board training system and E-Tech Doctor functions. The machine floor space requirements are reduced by integrating the di-electric reservoir into the base casting while also improving thermal stability; sustained long-term precision is further enhanced by circulating chilled fluid through the Y-Axis and Z-Axis structures to maintain the entire machine at a stable temperature.
