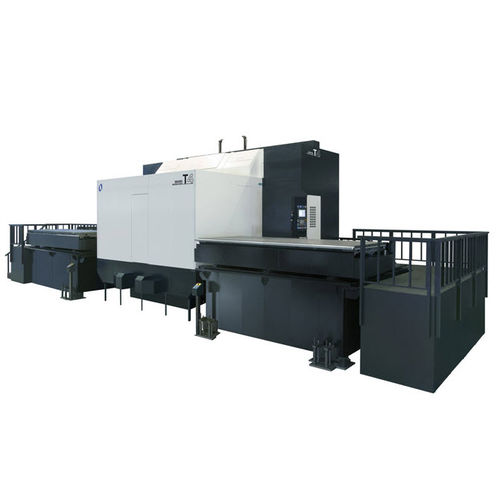

5-axis CNC machining center T4horizontal120 toolsfor large workpieces
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- horizontal
- Number of tool stations
- 120 tools
- Applications
- for large workpieces, for titanium
- Other characteristics
- high-productivity, rigid, high-power
- X travel
4,200 mm
(165.35 in)- Y travel
2,000 mm
(78.74 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
4,000 rpm, 8,000 rpm
(25,133 rad.min-1, 50,265 rad.min-1)- Power
100 kW
(135.96 hp)- Work feed X-axis
16,000 mm/min
(10 in/s)- Work feed Y-axis
16,000 mm/min
(10 in/s)- Work feed Z-axis
16,000 mm/min
(10 in/s)- Table load capacity
5,000 kg
(11,023 lb)- Tool weight (max)
30 kg
(66.1 lb)- Tool-changing time
20 s
Description
Makino’s new T4 5-axis titanium machining center dramatically increases titanium milling efficiency, combining lean manufacturing methods and increased metal-removal rates for today’s aerospace applications.
The T4 is specifically designed for the production of large titanium and titanium alloy aerospace parts such as edge frames, pylons and bulkheads. The T4 includes several key elements for efficient titanium machining, including an Active Dampening System, rigid construction for enhanced performance, a high-torque, high-powered spindle, and a high-pressure, high-flow coolant system for increased speed and productivity.
VIDEO
Catalogs
No catalogs are available for this product.
See all of MAKINO Milling Machine‘s catalogsOther MAKINO Milling Machine products
5‑Axis Horizontal Machining Centers
