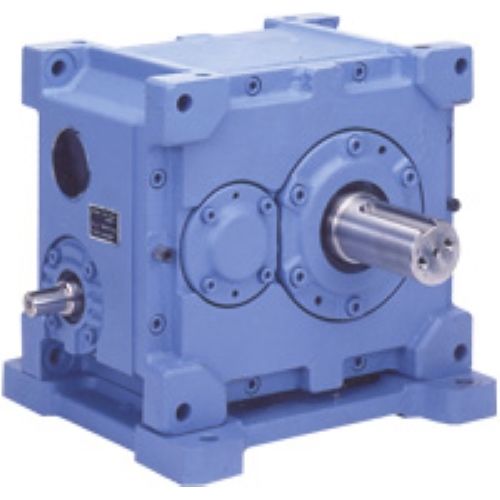

Two-stage gear reducer MAF serieswormhelical gearright angle
Add to favorites
Compare this product
Characteristics
- Type
- worm, helical gear
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft, solid-shaft, dual-shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm, 1 - 2 kNm, 5 - 10 Nm, 2 - 5 kNm, 5 - 10 kNm
- Configuration
- compact
- Number of stages
- two-stage
- Performance
- high-performance, high-efficiency, high-torque, high-power
- Applications
- transmission, for industrial applications, for automation, industrial
- Rotational speed
Max.: 1,800 rpm
(11,309.73 rad.min-1)Min.: 100 rpm
(628.32 rad.min-1)- Power
Max.: 9.9 kW
(13.46 hp)Min.: 0.1 kW
(0.14 hp)
Description
The MakiAce (MA Series) was born as a result of the combination of Makishinko's many years of experience with worm helical Speed Reducer development and cutting-edge technologies. MakiAce is a high-grade product targeted towards multiple fields and applications that boasts characteristics such as high-power, high efficiency, miniaturization, attractive appearance, easy usability and high-quality.
Orthogonal shafts -
Make space saving design possible.
Reduction ratio -
The orthogonal shafts offer high reduction ratios (50 to 360).
Shaft layout -
Output shafts available include the shafts available standard in all models, dual shafts (optional) or hollow models.
Torque -
A wide range is available from 405 to 6,700 Nm.
Models -
4 models available in the product line including the 100, 125, 160 and 200.
