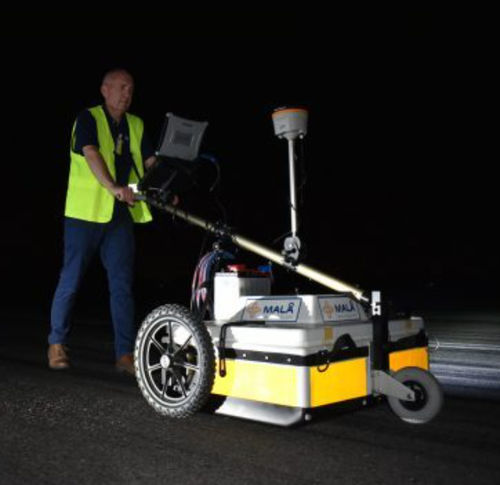

Mapping ground penetrating radar MIRA

for network detection

MALÅ 3D Imaging Radar Array (MIRA) is a one-pass 3D system providing a cost-effective solution for large-scale object identification and subsurface mapping. With a production rate of up to 50,000 m2 per day, it is the only system of its kind that seamlessly integrates the acquisition, processing, QA/QC, positioning data, interpretation and export of ground penetrating radar data. Application Areas MALÅ MIRA is designed for any large scale 3D mapping project. Some of the more common application areas include: Utility mapping & detection Archaeological excavations Forensic investigations Runway investigations Roadway and sidewalk scanning Sinkhole mapping Tunnel detection Locating buried objects A complete 3D Imaging Radar Array solution, from survey to end results. Mapping & imaging with 3D imaging radar array Efficient and detailed large scale subsurface mapping User-defined cross-channel communication 3 available antenna frequencies 200,400, and 1300 MHz Software for acquisition and post-processing included Can collect up to 50,000 m2 of data per day Customizable no. of channels depending on clients’ needs Compatible with external RTK GPS or Robotic Total Station MALÅ MIRA (3D Imaging Radar Array) system is designed using multiple antennas configured in an array, with the MALÅ ProEx control unit at its base. Up to 30 antennas can be used simultaneously to gather data in real time. It was designed to retain survey speed regardless of the number of antennas used. The power within this product lies in its ability to quickly and easily gather full 3D data in broad paths, the so-called “swots”.
