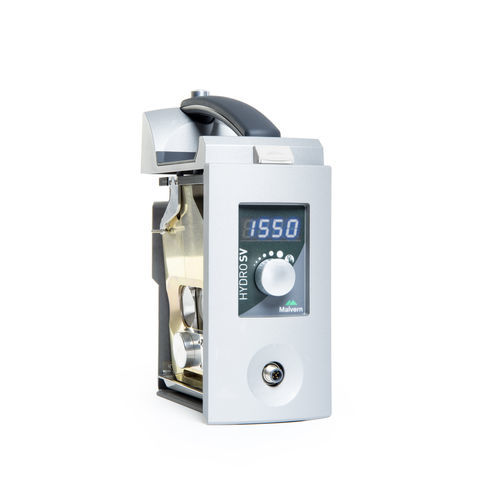

Small volume dispersion system Hydro SV

for particule size analysisfluid

The Hydro SV is a simple, cost effective liquid dispersion unit designed to enable particle size analysis using small volumes of sample and dispersant. The Hydro SV is a small volume wet sample dispersion unit for use with the Mastersizer 3000 range of laser diffraction particle size analyzers. It is particularly useful where the amount of sample available for analysis is very limited, or where there are significant environmental or health and safety issues associated with the use of the dispersant required to measure the sample. 6ml - 7ml sample volume Safe and easy sample introduction High chemical compatibility Software controlled magnetic stirrer for dispersion control Sample and dispersant retained for recovery or disposal Wash station for quick and easy cleaning The Hydro SV uses an aqueous or solvent-based liquid dispersant to disperse the sample during a laser diffraction particle size measurement. The wetting of the particle surfaces by the dispersant lowers the particle surface energy, reducing the forces of attraction between touching particles. This allows them to be separated and go into suspension. For dispersants with high surface tension, such as water, the addition of a small amount of surfactant can significantly improve the wetting behavior and subsequent particle dispersion.
