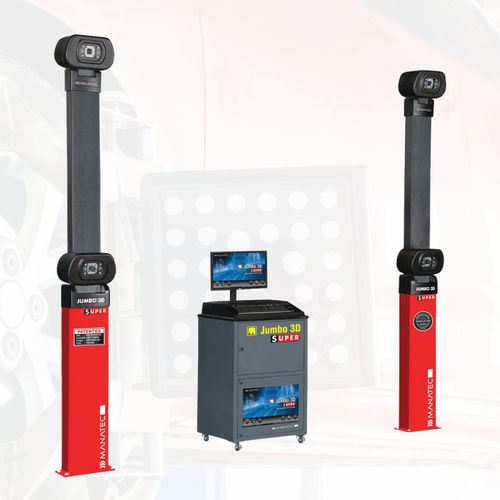

3D wheel aligner Jumbo Super

for trucksfor carbus

Simultaneous Run out measurement up to 6 axles by driving in just 1 minute No electronics on wheels No jack up of axle / No pushing mechanism for runout measurement Camera coverage up to 19 Mtrs (Camera to last Target plate) Drive Through option Innovative Image-Processing Technology Jumbo 3D uses latest, innovative, digital-imaging technology using 4 digital cameras for data-acquisition. High resolution 10 Megapixel digital cameras operate with intelligent software & capture seamless images of targets. One Shot Run out Compensation Jumbo 3D Super 6A uses 12 target plates at a time to measure simultaneous Run out. No Electronics on Wheels – No expensive service bills if accidentally target plate is dropped – Calibration not required – Free from battery discharge issues – Compact and light weight Robust Rotary Plates 4 Nos Rotary Plates capable of handling multi- axle Bus / Trucks capable of handling 7 tons capacity. One Shot Caster Swing for Twin Steer Axles Caster swing can be performed for twin steer axles simultaneously. Parallelism Adjustment Alignment of Front twin steer axles to maintain parallel condition. Thrust / Scrub Angle Adjustment Alignment of drive and tandem axles in multi axle trucks. Universal Wheel Bracket Wheel bracket ranges from 15 to 28 inches Standard rim locking pin suitable for both steel & aluminium rims Smart Support without Internet (Optional) Highly user-friendly Wi-Fi enabled Tablet & Mobile device to display alignment results & to operate PC from Alignment bay. Avoids multiple trips to PC console..
