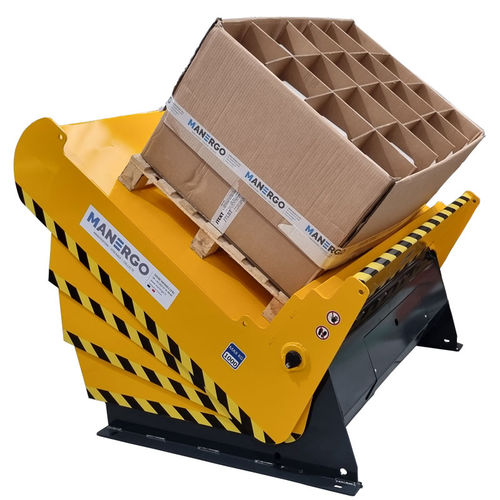

Hydraulic tilter AP40°100-140-115-4387

caseindustrial

This 40° box tilter, reference AP40°100-140-115-4387, allows an ergonomic gain on the workstation. The tilt is done by maintained contact and is actuated by a hydraulic cylinder. This type of equipment is made to measure, at the request of the customer, respecting a very precise specification. With the use of this 40° box tilter, the operator keeps an ergonomic position when picking up parts and thus limits RSI. The gain is twofold: improved working conditions and increased performance. THE CHARACTERISTICS OF THE 40° BODY TILTER : •Maximum load (CMU): 1000 kg at 0.575 m from the deck; •Tilt: 40°; •Overall length: 1477 mm ; •Overall width: 1434 mm ; •Overall height: 833 mm ; •Plateau length: 1150 mm ; •Tray width : 1400 mm ; •Loading height: 394 mm ; •Height under foot : 104 mm ; •Centre distance of sleeves : 420 mm ; OPTIONS : •Fork passage ; •Floor mounting plate ; PROTECTIONS: •Side protections type scales ; •Safety stand; •Anti-finger pinch bar; •Cylinder safety valve ; •Pictograms; PNEUMATICS: •Pneumatic supply: operating pressure 5-6 bar; •Pneumatic control: control by distributor, pedal type, connected by 8 meters of hose.
