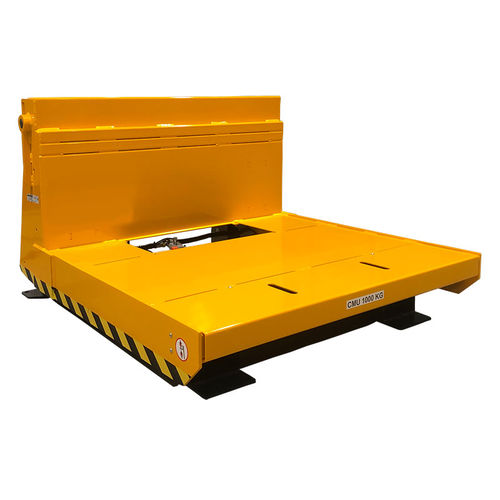

Electric tilter AP80°100-130-110-4317

hydrauliccasemetal

This 80° box tilter, reference AP80°100-130-110-4317, allows an ergonomic gain on the workstation. The tilt is done by maintained contact and is actuated by a hydraulic cylinder. This type of equipment is made to measure, at the request of the customer, respecting a very precise specification. With the use of this 80° box tilter, the operator keeps an ergonomic position when picking up parts and thus limits RSI. The gain is twofold: improved working conditions and increased performance. THE CHARACTERISTICS OF THE 80° BODY TILTER: •Maximum load (CMU): 1000 kg at 0.4 m from the deck; •Tilt: 80°; •Overall length: 1443 mm ; •Overall width: 1378 mm ; •Overall height: 885 mm ; •Plateau length : 1100 mm ; •Tray width : 1300 mm ; •Loading height: 264 mm ; •Height under foot : 110 mm ; •Rise time : 29 s ; •Descent time : 28 s ; •Number of cycles/hour: 17 ; •Centre distance of sleeves : 906 mm ; OPTIONS : •Floor mounting plate ; •Handling sheaths; PROTECTIONS: •Side protections type scales ; •Anti-finger pinch bar; •Cylinder safety valve ; •Emergency stop; •Pictograms; •Removable covers ; •Curtain on the back of the unit; ELECTRIC: •Power supply: 400V three-phase 50Hz / 24Vac control circuit; •Control panel : 1 box and 1 button box (on the left of the operator) ; •Buttons / Indicators: up / down / quick stop ; HYDRAULICS: •Hydraulic power unit: hydraulic power unit, tared, sealed and incorporated into the chassis with inspection hatch; •Hydraulic actuator: 2 SE cylinders ensuring the rotation.
