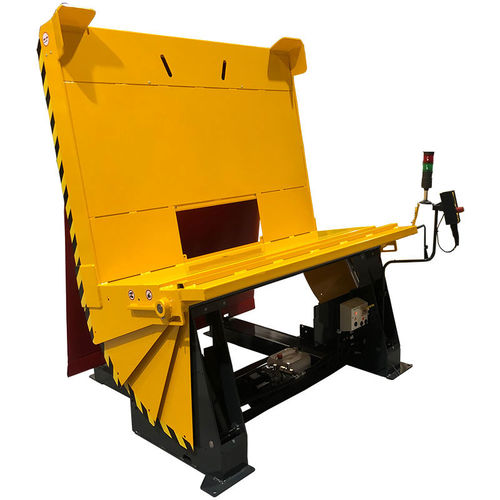

Electric tilter AP80°100-170-125-3903-2

hydrauliccasemetal

This custom-made 80° box tilter, reference AP80°100-170-125-3903-2, is made to the customer's specifications. The tilt is done by maintained contact and is actuated by a hydraulic cylinder. The tilt allows an ergonomic gain on the workstation. Indeed, with the use of this custom-made 80° box tilter, the operator keeps an ergonomic position when picking up parts and thus limits RSI. The gain is twofold: improved working conditions and increased performance. THE CHARACTERISTICS OF THE 80° CUSTOM CASE TILTER : •Maximum load (CMU): 1000 kg at 0.625 m from the deck; •Tilt: 80°; •Overall length: 1593 mm ; •Overall width: 1778 mm ; •Overall height: 885 mm ; •Plateau length: 1250 mm ; •Tray width : 1700 mm ; •Loading height: 264 mm ; •Height under foot : 110 mm ; •Rise time: 20 s ; •Descent time : 28 s ; •Number of cycles/hour: 17 ; •Have in corner; •Centre distance of sleeves : 950 mm ; OPTIONS : •Floor mounting plate ; •Handling sheaths; PROTECTIONS: •Side protections type scales ; •Anti-finger pinch bar; •Cylinder safety valve ; •Emergency stop; •Pictograms; •Removable covers ; •Curtain on the back of the unit; ELECTRIC: •Power supply: 400V tri / 24Vac control circuit; •Control panel: 1 box and 1 button box; •Buttons / Indicators: up / down / quick stop ; •Options: presence detector BANNER series Q40 / 90° angled connector (not connected) / 2 color light beacon red and green (not connected) ;
