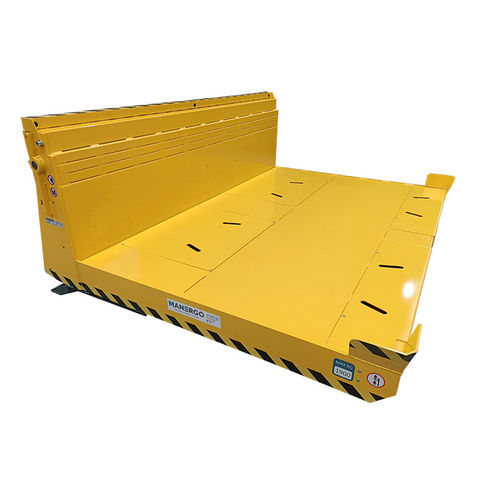

Hydraulic tilter AP80°190-250-165-4084-2

electriccase

This 80° case tilter for double cases, reference AP80°190-250-165-4084-2, is a custom-made equipment, according to the customer's request, respecting a very precise specification. It allows an ergonomic gain on the workstation. With the use of this 80° case tilter for double cases, the operator keeps an ergonomic position when picking up parts and thus limits RSI. The gain is twofold: improved working conditions and increased performance. The tilting is done by maintained contact and is actuated by a hydraulic cylinder. THE CHARACTERISTICS OF THE 80° CASE TILTER FOR DOUBLE CASES : •Maximum load (CMU): 2 x 950 kg at 0.81 m from the deck; •Tilt: 80°; •Overall length: 2030 mm ; •Overall width: 2598 mm ; •Overall height: 1043 mm ; •Plateau length: 1655 mm ; •Tray width: 2500 mm ; •Loading height: 290 mm ; •Rise time : 28 s ; •Descent time : 28 s ; •Number of cycles/hour: 14 ; •Wedge-shaped sluice ; •Pipe spacing: 600 mm; OPTIONS : •Floor mounting plate ; •Handling sheaths; PROTECTIONS: •Side protections type scales ; •Anti-finger pinch bar; •Cylinder safety valve ; •Emergency stop; •Pictograms; •Removable covers ; •2 curtains on the back of the unit; ELECTRIC: •Power supply: 400V tri / 24Vac control circuit; •Control panel: 1 box and 1 button box; •Buttons / Indicators: up / down / quick stop ;
