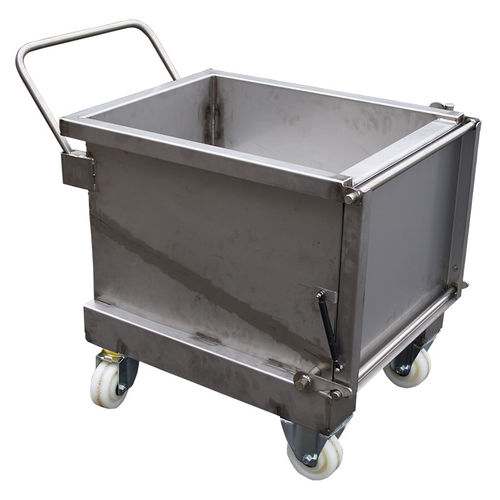

This 135 L sloped bottom body, reference BAFI135-3487, has a front door opening managed by gas compass. Its inclined bottom allows a complete emptying of the bucket. Opening control by lever and safety latch. Forklift forks for forklift recovery.
THE CHARACTERISTICS OF THE 135 L SLOPING BOTTOM BUCKET:
•Maximum load (CMU): 250 kg ;
•Overall length: 754 mm ;
•Overall width: 682 mm ;
•Overall height: 750 mm ;
•Useful length: 708 mm ;
•Useful width: 520 mm ;
•Tilt: 15°;
•Height under foot: 268 mm ;
•Sheath size : 114 x 77 mm ;
•Centre distance of sleeves: 488 mm;
OPTIONS :
•Wheels with polyamide tyres D125 in electro galvanized steel;
•Lever with safety latch;
•Retractable operating handle.
