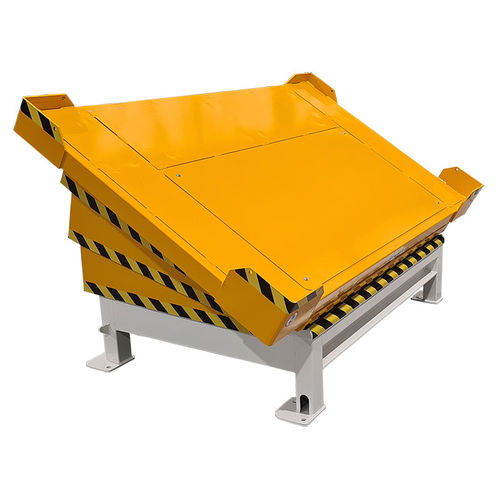

Hydraulic tilter AP30°05-200-125-2085-5

electriccase

This 30° hydraulic box tilter, reference AP30°05-200-125-2085-5, allows an operator to tilt a box or pallet. The tilt is controlled by hydraulic power. It is a 500 kg load that can be tilted, but according to the needs, we can tilt a more important load. The platform of this tilter is solid and of specific dimensions adapted to the specifications of the customer. THE CHARACTERISTICS OF THE 30° HYDRAULIC BODY TILTER : •Maximum load (CMU): 500 kg at 0.625 m from the deck; •Tilt: 30°; •Overall length: 1250 mm ; •Overall width: 2000 mm ; •Tray length: 1200 mm ; •Tray width : 1900 mm ; •Loading height: 543 mm ; •Height under foot : 170 mm ; •Downspout; OPTIONS : •Feet; •Floor mounting plates ; PROTECTIONS: •Scale-type side guards: loading side and sides; •Cylinder safety valve ; •Emergency stop; ELECTRIC: •Power supply: 400V tri / 24Vac control circuit; •Control panel: 1 box with foot control at 0.8 m from the device; •Buttons / Indicators: up / down / emergency stop ; HYDRAULICS: •Hydraulic power pack: hydraulic power pack tared and incorporated in the chassis with inspection hatch.
