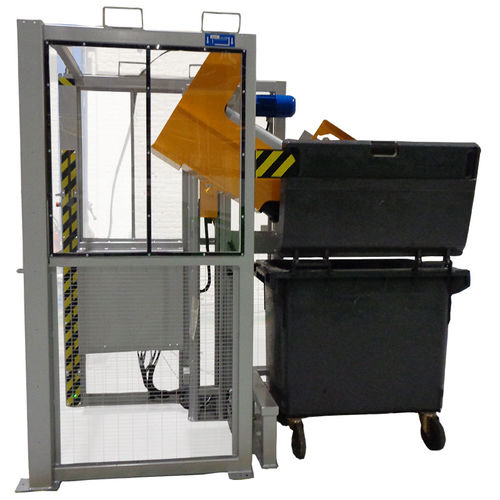

Electric metal lifting and turning device MER125°005-042-064-1400-4414

for boxes

This 125° rotation mast, reference MER125°005-042-064-1400-4414, allows the emptying of boxes containing products directly into a 4-wheel garbage can. Its steel receptacle facilitates the draining of the products present in the case thanks to a rotation of 125°. The 125° rotation mast helps to reduce MSD. Indeed, the repetition of physical tasks can lead to occupational diseases. THE CHARACTERISTICS OF THE MAST ELEVATION ROTATION 125°: •Maximum load (CMU): 50 kg at 0.33 m from the deck; •Tilt: 125°; •Overall length: 2677 mm ; •Overall width: 1338 mm ; •Overall height: 2500 mm ; •Tipper length : 640 mm ; •Tipper width: 420 mm; •Dumping height: 1384 mm ; •Loading height: on the ground ; •Rise time : 8 s ; •Lowering time: 8 s ; OPTIONS : •Floor mounting plates ; PROTECTIONS: •Safety chain; •Chain break detection; •Side panels: protection type mesh casings + makrolon, including one of 970 removable length; •Light curtain: 1800 mm long light curtain in loading area; •Emergency stop; •Pictograms; ELECTRIC: •Power supply: 400V tri 50Hz / control circuit 24Vdc ; •Cabinet / desk : 1 cabinet / 1 control desk / 1 rearming desk light curtain ; •Buttons / Indicators : - cabinet : 1 isolating switch / 1 power indicator / 1 ventilation grid with its filter / 1 fan ; - control panel: emergency stop / up (maintained contact) / down (maintained contact) / step-by-step cycle (maintained contact) / light curtain reset indicator; - reset panel : cycle start / cycle stop ; - 1 low position detection / 1 high position detection ; - 1 chain breakage detection and chain tension ; - 1 safety relay managing the emergency stops, the light curtain in the loading area.
