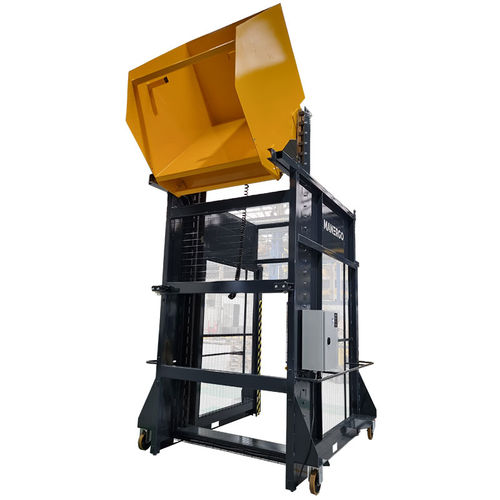

Electric tipping station SKIP135°050-135-115-3000SP-4380

cratemobile

This skip on wheels, reference SKIP135°050-135-115-3000SP-4380, allows the emptying of boxes containing products directly into a skip from the ground. Its steel receptacle facilitates the flow of the products present in the case thanks to a rotation of 135°. This device allows the emptying of products at more than 3 meters from the ground. Its wheels make it possible to move it quickly. The skip of emptying on wheels participates in the reduction of the TMS. Indeed, the repetition of physical tasks can lead to occupational diseases. THE CHARACTERISTICS OF THE SKIP OF EMPTYING ON WHEELS : •Maximum load (CMU): 500 kg at 0.50 m from the deck; •Tilt: 135°; •Overall length: 2893 mm ; •Overall width: 2241 mm ; •Overall height: 4043 mm ; •Tipper length: 1050 mm ; •Tipper width: 1350 mm; •Dumping height: 3146 mm ; •Loading height: on the ground ; •Rise time: 50 s ; •Descent time: 50 s ; OPTIONS : •2 fixed and 2 swivel wheels D200 with polyurethane tyre brakes; PROTECTIONS: •Brake motor ; •Removable mesh side panels in the spill area; •Light curtain in loading area / H : 1800 mm / resolution 30 mm ; •Emergency stop; •Pictograms; ELECTRIC: •Power supply: 400V three without neutral; •Box / desk : 1 electrical box / 1 control desk ; •Buttons / Indicators : - box : 1 isolating switch / 1 power indicator ; - console : emergency stop / cycle start / cycle stop / BI reset / up (maintained contact) / down (maintained contact) ; - Management by : high position detection / low position detection ; - Possibility to connect a NC contact for management of discharge authorization information.
