Electric tipping station VDC130°020-080-240-1850-4304

hydraulicmobile

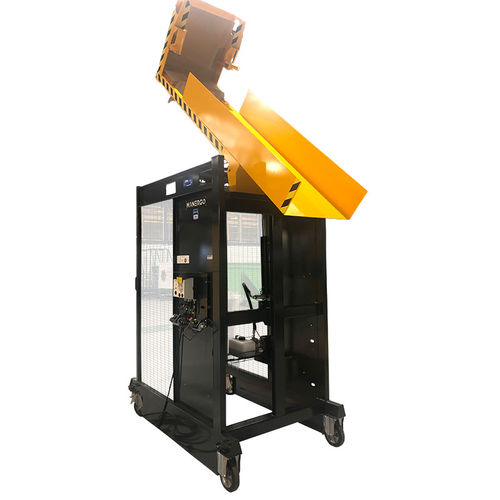

This 80 to 240 L waste garbage can tipper on wheels, reference VDC130°020-080-240-1850-4304, allows to empty 80 to 240 liters waste garbage cans. Equipped with wheels, it is easily manipulated to move it. Operated by a hydraulic power unit, this device is governed by electrical energy in 400, 220 or 24 volt (battery). The security is set up by 2 push buttons with maintained contact. THE CHARACTERISTICS OF THE 80 TO 240 L WASTE GARBAGE CAN TIPPER ON WHEELS: •Maximum load (CMU): 200 kg at 0.35 m; •Type of garbage cans: 80 L to 240 L ; •Overall length: 1856 mm ; •Overall width: 1293 mm ; •Overall height: 2567 mm ; •Garbage can width: 635 mm ; •Dumping height: 1850 mm ; •Maximum tilt angle: 130°; •Rise time : 18 s ; •Descent time : 12 s ; •Number of cycles/hour: 20 ; •Sheath size : 200 x 100 mm ; •Pipe spacing: 600 mm; OPTIONS : •Discharge chute ; •Fork passage ; •Slinging rings ; •Handle; •2 fixed wheels + 2 swivel wheels with D200 brakes / rubber tyres ; PROTECTIONS: •Pictograms; •Cylinder safety valve ; •Emergency stop; •Mesh side panels; •Two-hand control ;
