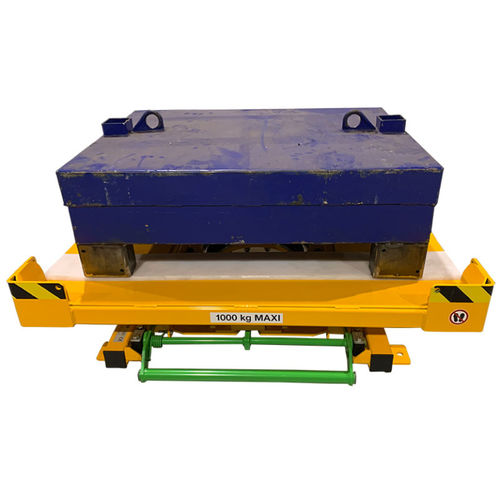

Manual turntable PT10-125-105-300-4191-1

horizontalloadingmechanical

This turntable for plastic boxes, reference PT10-125-105-300-4191-1, allows the rotation of a container. At 300 mm from the ground, the tray can accommodate a 1000 by 1200 mm pallet. This pallet will be guided by 4 chutes. The movement of the tray is activated by a manual pedal. This turntable for plastic crates facilitates ergonomics at the workstation. THE CHARACTERISTICS OF THE TURNTABLE FOR PLASTIC BOXES: • Maximum load (CMU): 1,000 kg ; • Tare : 300 kg ; • Plate indexing : every 180°; • Rotation system: 360° ball bearing; • Overall length: 1266 mm ; • Overall width: 1066 mm ; • Overall height: 380 mm ; • Plateau length : 1205 mm ; • Tray width : 980 mm ; • Loading height: 300 mm ; • Height under foot: 99 mm ; • Type of tray : smooth sheet metal ; • Avaloir : in corner of height 80 ; OPTIONS : • Feet; • Floor mounting plates ; • Slinging rings ; PROTECTIONS: • Rotation lock system: mechanical lock with pedal release; • Crown access hatch; • Pictograms.
