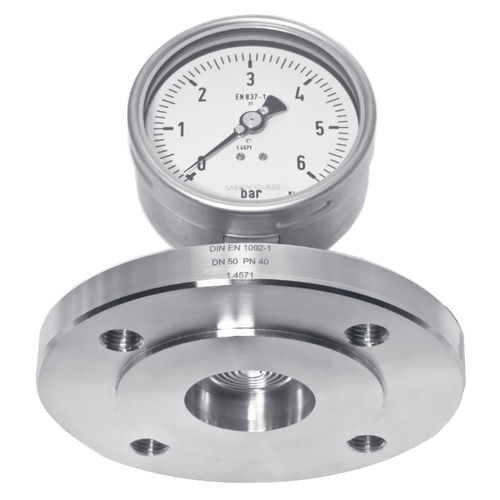

Diaphragm seal with flange connection D702

for pressure gaugeschemical

Service intended: With contaminated, hot and viscous media chemical seals are used as separators for special requirements special material seals are used. Cooling elements and capillary extensions are additional accessories. Upper body:Stainless steel 316Ti Diaphragm:Stainless steel 316L Sealing ring:FPM Flange:Galvanised carbon steel, per DIN EN 1092-1 resp. ASME B 16.5, alternatively stainless steel 316Ti Sealing face:per DIN EN 1092-1 forme A / B 1 resp. ASME RF Retainer flange:Galvanised carbon steel, alternatively stainless steel 316Ti Bolting:alvanised carbon steel, alternatively stainless steel 316Ti Filling liquid:Silicone oil Temperature stability Tmin / Tmax:- 20 ... +200°C
