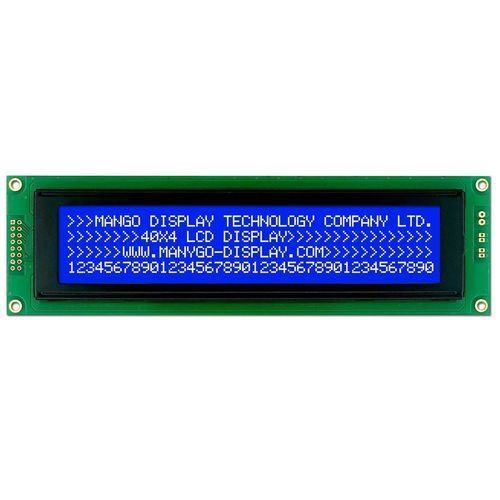

LCD STN display module MD404Amonochromealphanumeric40 x 4
Add to favorites
Compare this product
Characteristics
- Screen type
- LCD STN
- Type
- monochrome, alphanumeric
- Format
- 40 x 4, 4-line
- Applications
- instrumentation, industrial, control, for control panels, for medical equipment, information, for gas stations, for remote control, safety, digital signage, for weighing devices, remote, for flow measurement
- Structure
- bar shape, compact
- Configuration/mounting
- portable, panel-mount
- Other characteristics
- cost-effective, electronic, LED-backlit, battery-powered
- Width
190 mm
(7.4803 in)- Height
54 mm
(2.126 in)
Description
MD4004A is a monochrome 40x4 character LCD display module which is having the outline size 190x54 mm and viewing area size of 147×43.1 mm. This 40x4 character LCD display is built in with SPLC780D controller IC or compatible IC. It supports 6800 8-bit parallel interface and 5V power supply. Yellow green or blue color available. Small qty acceptable.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Display: 40×4 character
Outline: 190x54x15mm
VA: 147×43.1mm
Controller: SPLC780D
Character: 2.78×4.89 mm
Driver: 1/16
LCD: STN Blue negative/ STN positive YG
Backlight: White LED/yellow green LED
