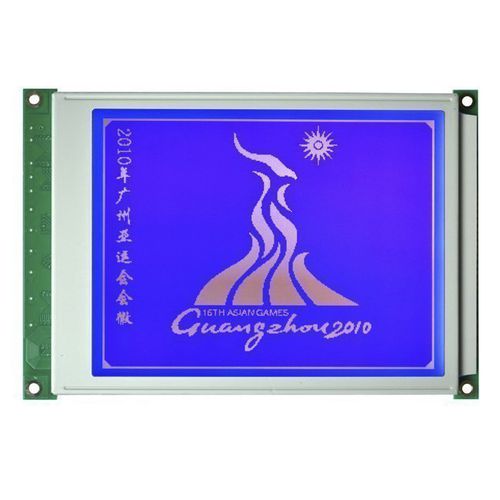

Transflective display module MD320240A
LCD STNdot-matrixgraphic

transflective display module
transflective display module
Add to favorites
Compare this product


Characteristics

Type
transflective, LCD STN, dot-matrix, graphic, monochrome
Format
320 x 240
Applications
instrumentation, industrial, control, for control panels, for medical equipment, for gas stations, for pressure measurement, information, for remote control, remote, for flow measurement, safety, power, for gas meters, for the energy sector
Other characteristics
cost-effective, electronic, indoor, MCU, LED-backlit
Width

160 mm
(6.2992 in)

Height

109 mm
(4.2913 in)

Description

MD320240A is a monochrome 320x240 graphic LCD display module which is having the outline size 160×109 mm and viewing area size of 120.0×92.0 mm. This 320x240 graphic LCD display is built in with RA8835 controller IC or compatible IC. It supports 6800 8-bit parallel interface and 5V power supply. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment. Display: 320×240 dots Outline: 160×109×11mm VA:120.0×92.0mm Controller: RA8835 OR EQUIV Character: 0.34×0.34mm Driver: 1/240 LCD: STN blue Negative Backlight: White LED
