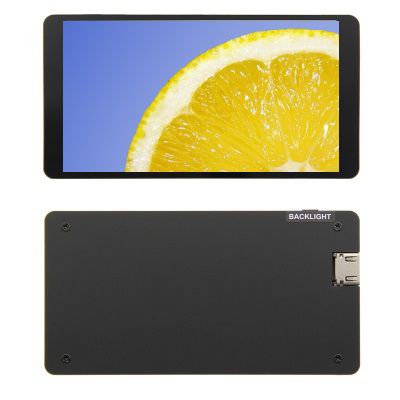

TFT LCD display panel
IPScapacitive touch screenresistive touch screen

TFT LCD display panel - Mango Display Technology Co. Ltd - IPS / capacitive touch screen / resistive touch screen
TFT LCD display panel - Mango Display Technology Co. Ltd - IPS / capacitive touch screen / resistive touch screen
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, IPS, capacitive touch screen, resistive touch screen
Type
color
Format
1920 x 1080
Screen size
5.5"
Applications
industrial, information, instrumentation, for vehicles, current measurement, for marine applications
Interface
HDMI
Other characteristics
electronic, LED-backlit, cost-effective
Width

143.4 mm
(5.6457 in)

Height

75.3 mm
(2.9646 in)

Description

Screen Type - IPS screen Screen Size - 5.5 inch Resolution - 1920×1080 Backlight adjustment - Key switch adjustment Touch Screen Type - NO Power - MicroUSB(5V) Module overall power - 3.99W (100% brightness) Video Input Interface - HDMI(up to 1080p) Active Area - 68.04(W)x120.96(H) (mm) Module Size (L x W x H) - 143.4×75.3×10.6 (mm) Packaging Size (L x W x H) - 185x108x63 (mm) 5.5inch IPS full Angle display ○The viewing Angle is large ○true color ○picture quality is excellent 1920X1080 resolution ○HD vision ○The display is very delicate HDMI interface ○HD input ○Can be used as HDMI display Support multiple device access ○Can be connected to mainstream development boards such as Raspberry Pi, banana Pi and BB black ○Can be connected to PS4, XBOX360, switch and other mainstream game consoles ○Can be connected to mainstream TV box and digital camera Support multiple system display ○Support Raspberry Pi OS, Kali Linux, Ubuntu, Kodi, win10 IOT and other systems ○Support win7/8/10/11 and other systems

Catalogs

No catalogs are available for this product.

See all of Mango Display Technology Co. Ltd‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
