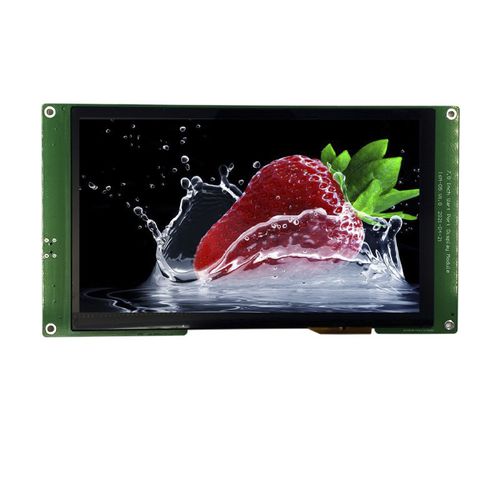

7" display module MST0700-05C

TFTcapacitive touch screen800 x 480

7inch 800*480 UART TFT Display Part NO.: MST0700-05C Resolution:800*480 Interface:UART/TTL IC or Equivalent:ST7789V Outline Dimension:194.2*107.84*12.2MM Viewing Area:154.08*85.92MM Brightness:280cd/M2 Viewing Angle: 12:00 UART display is an LCD screen that uses UART serial port for communication. It is a smart and easy-to-use TFT LCD, which can quickly create the required images and actions.The user sends instructions to the serial LCD screen through the single-chip microcomputer, and the serial port screen will automatically complete all operations of drawing on the LCD. Due to the simple operation, even people who do not know any programming can easily develop the human-computer interaction interface they want.It allows users to control high performance TFT displays from low-end systems. There are 4 main advantages of UART TFT Display: All-In-One System – Behind the TFT panel, we designed the control board with a microcontroller and external flash, which can directly drive TFT, backlight, and the touch panel. Easy-To-Upgrade – The firmware can be upgraded online using a dongle to upload the latest version. Less Coding Process – Customers can easily handle programming and testing without complicated coding procedures. Fewer I/O ports – Customers can directly drive the TFT via the UART interface, and a compatible USB adaptor is also provided.
