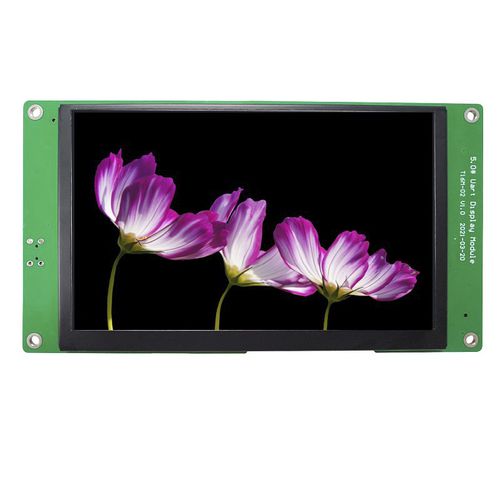

5" display module MST0500-02N

TFT800 x 480for control panels

5inch RS232 UART TFT Display Part NO.: MST0500-02N Resolution:800*480 Interface:UART/TTL IC or Equivalent:ST7789V Outline Dimension:150*81.85*10.45MM Viewing Area:108*64.8MM Brightness:250cd/M2 Viewing Angle: 6:00 UART display is an LCD screen that uses UART serial port for communication. It is a smart and easy-to-use TFT LCD, which can quickly create the required images and actions.The user sends instructions to the serial LCD screen through the single-chip microcomputer, and the serial port screen will automatically complete all operations of drawing on the LCD. Due to the simple operation, even people who do not know any programming can easily develop the human-computer interaction interface they want.It allows users to control high performance TFT displays from low-end systems. There are 4 main advantages of UART TFT Display: All-In-One System – Behind the TFT panel, we designed the control board with a microcontroller and external flash, which can directly drive TFT, backlight, and the touch panel. Easy-To-Upgrade – The firmware can be upgraded online using a dongle to upload the latest version. Less Coding Process – Customers can easily handle programming and testing without complicated coding procedures. Fewer I/O ports – Customers can directly drive the TFT via the UART interface, and a compatible USB adaptor is also provided.
