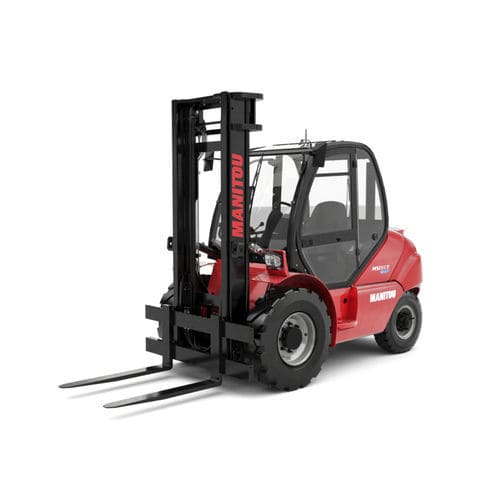

Diesel forklift MSI 50 ST5ride-onindustrialhandling
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Operator
- ride-on
- Applications
- handling, industrial
- Other characteristics
- 4-wheel, compact
- Carrying capacity
5,000 kg
(11,023.1 lb)- Lifting height
6,000 mm
(236.22 in)- Overall width
1,732 mm
(68.2 in)- Overall length
4,584 mm
(180.5 in)- Load center distance
600 mm
(23.6 in)- Weight without load
8,420 kg
(18,562.9 lb)- Axle loading with maximum load front
11,470 kg
(25,287 lb)- Axle loading with maximum load rear
1,660 kg
(3,659.7 lb)- Axle loading without load front
3,490 kg
(7,694.1 lb)- Axle loading without load rear
4,820 kg
(10,626.3 lb)- Height of mast when lowered
Max.: 3,425 mm
(134.8 in)Min.: 2,425 mm
(95.5 in)- Free lift
Max.: 2,033 mm
(80 in)Min.: 1,258 mm
(49.5 in)- Overall height with mast raised
Max.: 6,972 mm
(274.5 in)Min.: 3,972 mm
(156.4 in)- Height to top of overhead guard
2,440 mm
(96.1 in)- Seat height
1,435 mm
(56.5 in)- Tow couplig height
605 mm
(23.8 in)- Length to fork face
3,384 mm
(133.2 in)- Fork carriage width
1,670 mm
(65.7 in)- Ground clearance under mast with load
185 mm
(7.3 in)- Ground clearance at center of wheelbase with load
220 mm
(8.7 in)- Turning circle radius
2,950 mm
(116.1 in)- Travel speed
20 km/h
(12.4 mph)- Lifting speed
0.37 m/s, 0.39 m/s
(1.214 ft/s, 1.28 ft/s)- Lowering speed
0.34 m/s, 0.48 m/s
(1.115 ft/s, 1.575 ft/s)- Rated drawbar pull
2,471 daN, 3,393 daN
- Gradeability
29 %, 32 %
- Rated output
55 kW
(74.8 hp)- Rated speed
2,200 rpm
(13,823 rad.min-1)- Cubic capacity
Max.: 2,900 cm³
(98.1 US fl oz)Min.: 4 cm³
(0.1 US fl oz)- Maximum operating pressure
230 bar
(3,335.9 psi)- Oil flow
45 l/min
(11.9 us gal/min)- Noise level
81 dB
Description
For years, many manufacturers have recognised the exclusive advantages of the MSI concept from MANITOU.
Equipped with large-diameter wheels at the front, this compact semi-industrial forklift excels on all terrains, both indoors and outdoors.
With crossing qualities, stability and manoeuvrability that are incomparable for its category, the MSI 50 is very versatile: handling long loads, storage/unstocking, loading/unloading (trucks, wagons...), and is used in a wide variety of sectors (oyster farming, food processing, timber industry...).
VIDEO
Catalogs
No catalogs are available for this product.
See all of MANITOU‘s catalogs
